Overview
The air knife technology adopted by the dryer is developed to solve the problem that labels cannot be adhered because the water on outer walls of the glass bottle cannot be removed. It Is applied in medium and high-speed production lines.
Performance Features
It is suitable for various kinds of irregular-shaped bottles and standard bottles. With such features as stable performance, good drying effect, no dust pollution caused by brush, simple operation, maintenance-free, low energy consumption and no wearing parts, it is currently the ideal drying equipment.
Working Principle
The bottle enters the low temperature fan through the air filter, and after air compression, enters the air knife through the pipe, a strong wind belt is formed at the air knife edge, and the high speed wind is adopted to blow dry the water and water film on the bottle walls from different directions. The air knife can be rotated in up, down, left and right directions. The blow drying area can be adjusted according to the need, and the operation is simple. The machine adopts imported fan, which has low noise and high air volume.
Main Technical Parameters
| Production capacity | 5000-20000 bottles/hour | Applicable bottle diameter | ∅30-Ø140mm |
| Applicable bottle type | various kinds of irregular-shaped bottles, round bottles | Outline dimensions | 3000 x 1000 x 1600mm (adjusted according to the need) |
| Applicable bottle height | 50-350mm | Power consumption | 12kw |

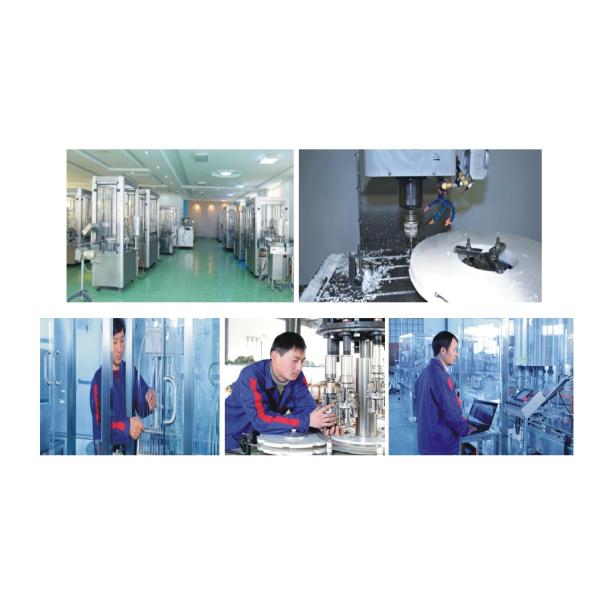

About us
-Listed company founded in 2003(WINLONG GROUP CORPORATE)
-17 years’ manufacturing experience in the aseptic filling production line.
-Exclusive manufacturing factory of 20,000 square meters (Changzhou, Jiangsu)
-More than 100 famous enterprise business partners across China.
-Expanded global business network
-Proven design, efficient and reliabile products.
-Customized design to meet the customer’s demand.
Our Services and Warranty
1.We can customize the machine as customer required.
2.Available for OEM/ODM service.
3.Offer living broadcast or video support.
4.To Door installation and training service.
5.Offer filling line solution with customer requirement.
6.Customer’s design are welcomed.
7.Competitive price with on-time delivery.
8.Main spare parts one year warranty ( personal damaged except ).
We can customize with your packaging materials, production capacity and demands.
We will provide you with associated design solutions and case videos.
